White Rodgers Thermostat Manual PDF

If you landed here because you need the White Rodgers thermostat manual PDF, you’re in the exact spot I’d send one of my own customers after an install.

I’ve worked on hundreds of White Rodgers thermostats over the last decade, from simple battery powered models to programmable versions with installer settings that can trip people up. The good news is that this brand is usually straightforward once you know two things

• How to identify your exact model
• Where the official PDF lives and what sections actually matter

This guide walks you through downloading the correct manual, understanding what you’re looking at, programming it the right way, and fixing the most common problems without guesswork.

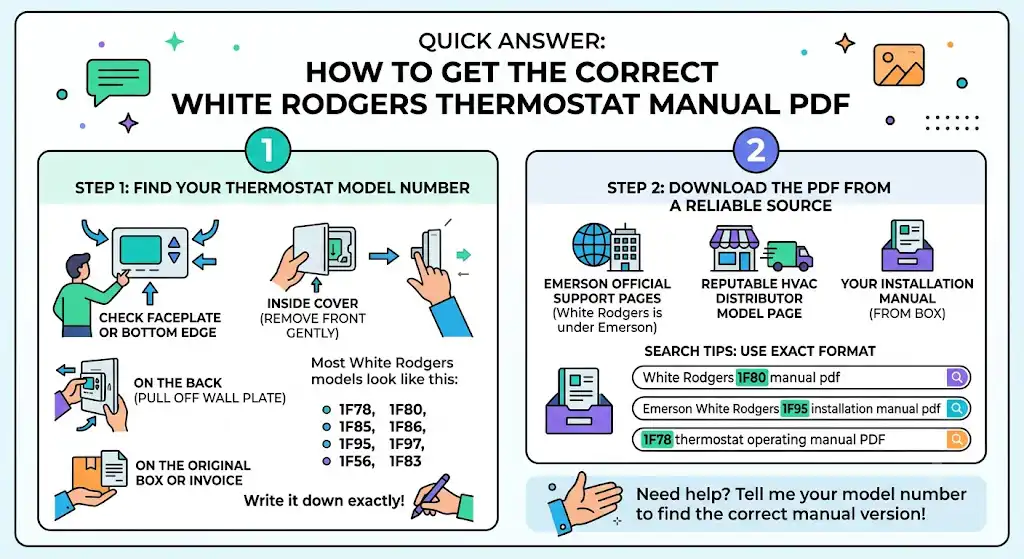

Quick answer: how to get the correct White Rodgers thermostat manual PDF

To download the right manual PDF, you need the thermostat model number. With White Rodgers, one digit off can mean a totally different wiring diagram and programming menu.

Step 1: Find the model number (this matters more than anything)

Check these places in this order.

• On the thermostat faceplate (sometimes the bottom edge)
• Inside the cover (remove the front gently)
• On the back of the thermostat (you may need to pull it off the wall plate)
• On the original box or invoice

Most White Rodgers models look like this.

• 1F78
• 1F80
• 1F85
• 1F86
• 1F95
• 1F97
• 1F56
• 1F83

Write it down exactly.

Step 2: Download the PDF from a reliable source

In real service work, I recommend these options first.

• Emerson official support pages (White Rodgers is under Emerson)
• The model specific PDF page from a reputable HVAC distributor
• Your installation manual that came in the box (many homeowners still have it in a drawer)

Tip from the field: when you search, use the exact format below

• “White Rodgers 1F80 manual pdf”
• “Emerson White Rodgers 1F95 installation manual pdf”
• “1F78 thermostat operating manual PDF”

If you tell me your model number, I can also help you figure out which manual version matches your thermostat, because some models have multiple revisions.

Why the manual matters more than most people think

A lot of homeowners only open the manual when something goes wrong. But the manual includes settings that directly affect comfort and system health, like

• heating cycle rate or swing
• heat pump configuration
• compressor protection delay
• fan behavior (gas vs electric)
• staging for multi stage systems

If these are wrong, your system can short cycle, feel uneven, or cost more to run.

White Rodgers thermostats explained (in plain English)

White Rodgers thermostats are popular because they are typically

• reliable
• widely compatible with common HVAC systems
• easy to program once you understand the schedule structure

Common thermostat types you’ll see

1. Basic non-programmable: You set a temperature, and it holds it. Great for simplicity, not great for energy savings.
2. Programmable (most common): You can set schedules like Wake, Leave, Return, Sleep.
3. Heat pump capable models: These have settings for O or B reversing valve, Aux heat behavior, and compressor delays.
4. Smart” or Wi Fi capable: White Rodgers branding overlaps with Emerson products. Some homeowners think they have a smart model when it’s actually just programmable. The manual will confirm what you have.

What’s inside a White Rodgers thermostat manual PDF

Most manuals are split into two big categories

• Operating manual (what you use daily)
• Installation and wiring manual (what techs use)

Here’s what I tell homeowners to focus on first

Quick start or basic operation	Set temp, change mode, fan settings	Prevents “why is it blowing cold” panic
Programming or schedule	Create weekday weekend schedules	Biggest comfort and savings impact
Installer configuration	System type, heat pump settings, swing	Wrong settings can cause short cycling
Troubleshooting	Blank screen, no heat, no cool	Saves time and service calls
Wiring diagram	Terminal identification	Critical if replacing thermostat

Real world energy savings (what you can actually expect)

Thermostats don’t magically cut bills, but correct programming and setpoints do.

According to the U.S. Department of Energy, you can save up to about 10 percent a year on heating and cooling by adjusting your thermostat 7 to 10 degrees Fahrenheit for 8 hours a day.

Here’s a simple way to think about it

No schedule, constant temperature	Convenience, higher run time	Most common in first time homeowners
Basic schedule with setbacks	Lower run time during away hours	Usually noticeable within 1 to 2 billing cycles
Aggressive setbacks with recovery	Highest savings, risk of discomfort if poorly set	Works best with the right system type

Important note from my technician side: heat pumps and older homes sometimes need gentler setbacks to stay comfortable.

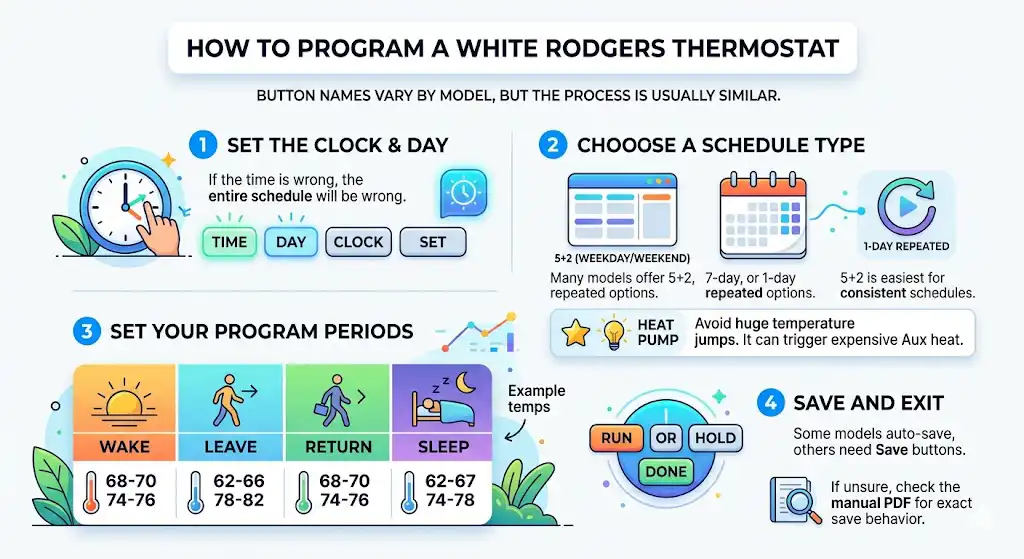

How to program a White Rodgers thermostat (step by step)

Your exact button names vary by model, but the process is usually similar.

Step 1: Set the clock and day

If the time is wrong, the whole schedule will be wrong.

Look for buttons like

• Time
• Day
• Clock
• Set

Step 2: Choose a schedule type

Many models offer

• 5 2 (weekday weekend)
• 7 day
• 1 day repeated

If you work a consistent schedule, 5 2 is easiest.

Step 3: Set your program periods

Most White Rodgers programmable thermostats use four periods.

• Wake
• Leave
• Return
• Sleep

A practical sample schedule I use in my own recommendations

Wake	68 to 70	74 to 76	Morning
Leave	62 to 66	78 to 82	Away
Return	68 to 70	74 to 76	Evening
Sleep	62 to 67	74 to 78	Night

Tip: If you have a heat pump, don’t set huge jumps. It can trigger Aux heat and cost more.

Step 4: Save and exit

Some models auto-save. Others need Run, Hold, or Done.

If you’re unsure, the manual PDF will show the exact “save” behavior.

Hold, temporary hold, and permanent hold (this confuses almost everyone)

In service calls, this is one of the top reasons people think the thermostat “isn’t working.”

• Temporary Hold changes temperature until the next scheduled period
• Permanent Hold ignores the schedule until you cancel it
• Run or Program returns the thermostat to the schedule.

If your schedule “isn’t following,” check if Hold is active.

Wiring terminals cheat sheet (common White Rodgers labels)

If you’re only downloading the manual because you’re replacing or reinstalling, wiring matters. Always shut power off at the breaker.

Here are the most common terminal letters you’ll see

R or RH and RC	24V power	Some systems have a jumper between RH and RC
C	Common wire	Needed for many powered thermostats, not always present
W or W1	Heat call	Gas or electric heat depends on system
Y or Y1	Cooling call	Also used for heat pump compressor
G	Fan	Controls indoor blower
O or B	Heat pump reversing valve	The manual tells you if it’s O or B
AUX or E	Auxiliary or emergency heat	Heat pumps only
Y2 W2	Second stage	Multi stage systems

If you are not 100 percent sure what system you have, don’t guess. I’ve seen guessing blow fuses on the control board.

Download PDF Here For 70 Series

Download PDF Here For 1F78

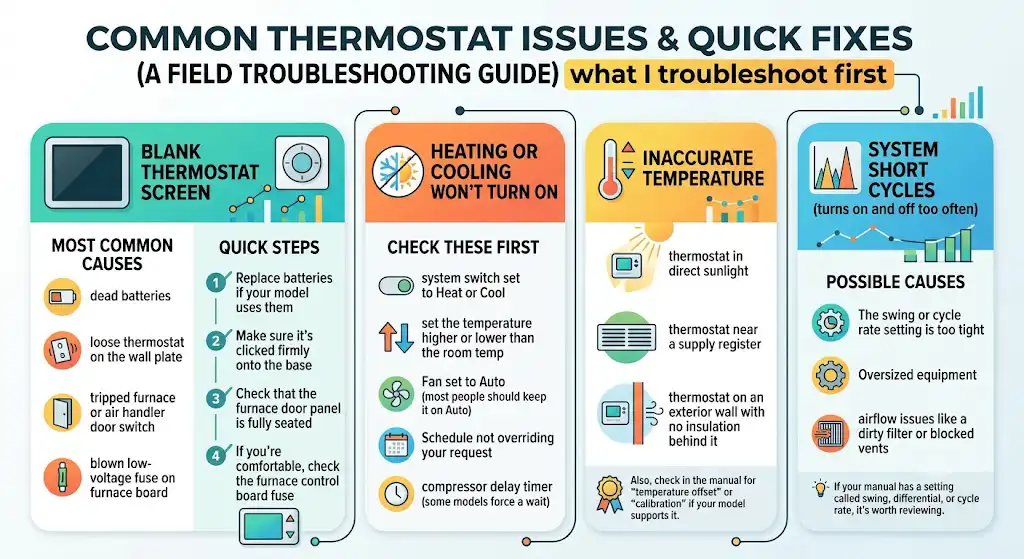

Common issues and fixes (what I troubleshoot first)

Here’s the same checklist I run through in the field.

The thermostat screen is blank.

Most common causes

• dead batteries
• loose thermostat on the wall plate
• tripped furnace or air handler door switch
• blown low-voltage fuse on furnace board

Quick steps
1 Replace batteries if your model uses them
2 Make sure it’s clicked firmly onto the base
3 Check that the furnace door panel is fully seated
4 If you’re comfortable, check the furnace control board fuse

Heating or cooling won’t turn on

Check these first

• system switch set to Heat or Cool
• set the temperature higher or lower than the room temp
• fan set to Auto (most people should keep it on Auto)
• Schedule not overriding your request
• compressor delay timer (some models force a wait)

The temperature is inaccurate

In my experience, the biggest causes are placement issues.

• thermostat in direct sunlight
• thermostat near a supply register
• thermostat on an exterior wall with no insulation behind it

Also, check in the manual for “temperature offset” or “calibration” if your model supports it.

System short cycles (turns on and off too often)

Possible causes

• The swing or cycle rate setting is too tight
• oversized equipment
• airflow issues like a dirty filter or blocked vents

If your manual has a setting called swing, differential, or cycle rate, it’s worth reviewing.

Maintenance tips that keep your thermostat behaving correctly

A thermostat isn’t maintenance heavy, but these habits prevent the usual problems.

• Replace batteries once a year if your model uses them
• Keep the thermostat level and firmly mounted
• Keep supply vents open and filters clean to reduce short cycling complaints
• Avoid frequent big manual changes if you use a schedule

Safety note from a tech

If you remove the thermostat from the wall to check wiring, shut power off to the HVAC system at the breaker. Low voltage can still short and blow a fuse, and then you’ll have no heat or cool until it’s repaired.

If you’re ever staring at a wire labeled something odd or doubled up wires under one terminal, that’s a good moment to pause and call a pro.

FAQ: White Rodgers thermostat manual PDF

My closing advice

Once you download the correct White Rodgers thermostat manual PDF, don’t just skim it. Spend five minutes on these sections.

• system type and wiring diagram
• installer configuration options
• programming schedule steps
• hold and run behavior
• troubleshooting chart

That’s the difference between a thermostat that “kind of works” and one that runs your home comfortably without wasting energy.
