Which Way Does an Air Filter Go? - (Installing AC Filters Properly)

As the owner of a central heating and cooling system, one of your most essential maintenance responsibilities is regularly changing your air filter (at least every 3 months at most). That’s because a dirty and clogged air filter will significantly impair the efficiency of your furnace and air conditioner.

Installing your air filter in the right direction is important because it allows your furnace or air conditioner to work more efficiently. I know that sometimes it can be tricky to know which way the air filter is meant to go. Thus the reason for creating this guide.

To ensure your system is working correctly, it’s essential to know which way the air filter goes. Most air filters are clearly marked with an arrow indicating the airflow direction. The arrow should point toward the blower motor, which is the component that pulls air through the filter.

If your air filter is not marked with an arrow, you can usually tell which way the air flows by looking at the pleats. The air filter should be installed so that the pleats face downward toward the floor. This allows the air to flow through the filter more easily.

Installing your air filter in the wrong direction can damage your furnace or air conditioner, so it’s important to get it right. If you’re unsure how the air filter goes, consult your owner’s manual or call a qualified HVAC technician.

Which Way Does the Arrow Go on an Air Filter?

The arrow is pointing in the direction of the airflow.

Which Side Does the Air Filter’s Metal Mesh Face?

The metal mesh on the air filter should face the inside of the air ducts.

The Purpose of an Air Filter

The air filter in your home is there for a reason – to help keep the air clean!

But how does it do this, and why is it important?

The air filter traverses airborne particles that would otherwise circulate around your home. These particles can include dust, pollen, and even pet dander.

Check out List of our Popular Calculators

Trapping them in the filter prevents them from recirculating and causing allergies or other respiratory problems. Changing your air filter regularly is important, as a dirty filter will not be as effective at trapping particles.

Depending on your filter type, you may need to change it every few months (2-3 months).

If you have allergies or other respiratory problems, a clean air filter can significantly affect your quality of life.

Keep your air filter clean to help trap airborne particles and improve your quality of life!
Click To Tweet

Tips For Properly Installing an Air Filter

Here’s how to make sure your HVAC air filter is installed the right way, why proper orientation matters, and what homeowners should keep in mind to protect indoor air quality and system performance.

Always Follow the Airflow Arrow

Most HVAC air filters have an arrow printed on the side of the frame. This arrow shows the direction of airflow, not which way the filter slides in.

The arrow should always point toward the blower motor or air handler. It’s the part of the system that pulls air through the filter. In simple terms, air moves from the return duct, through the filter, and into the HVAC unit. The arrow must follow that same path.

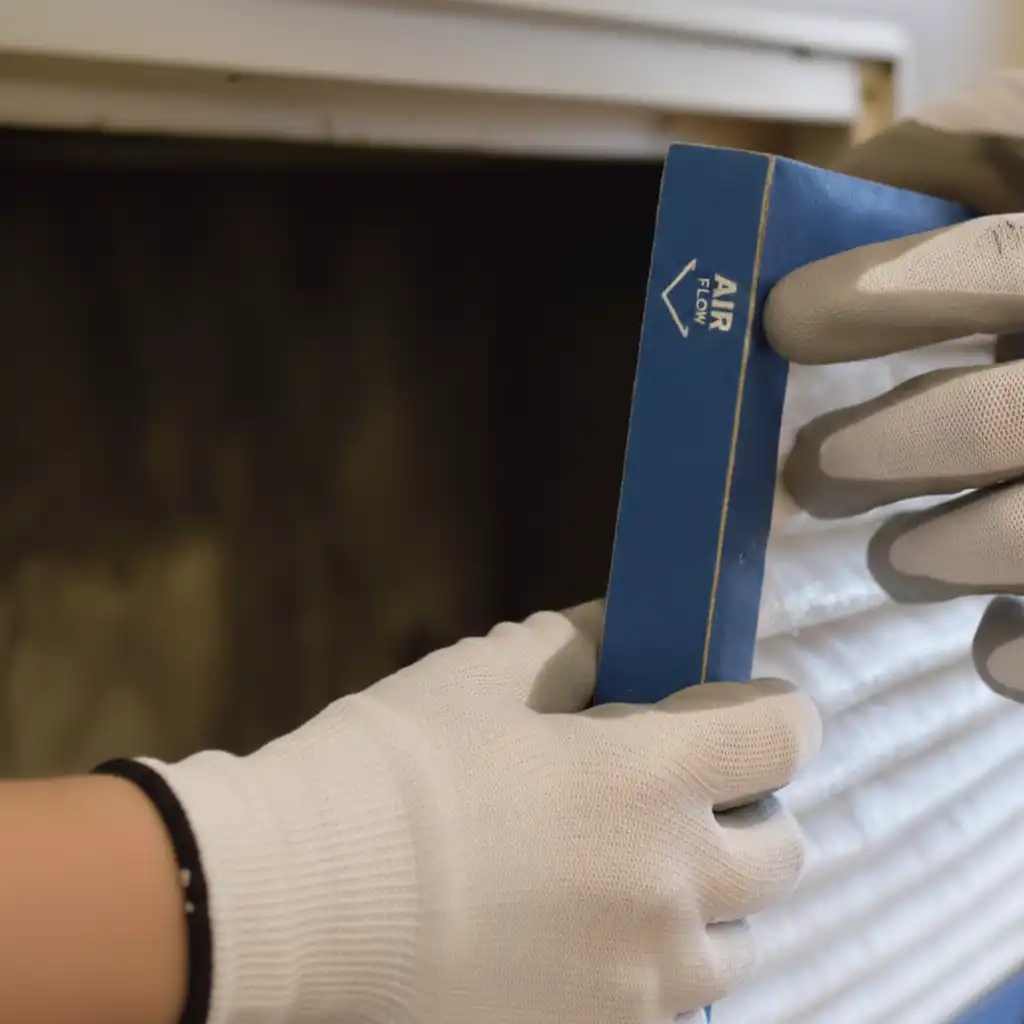

Close-up of a person wearing gloves installing a pleated HVAC air filter into a return vent, showing the airflow arrow on the filter frame pointing toward the HVAC unit.

Identify the Return Air Side

If you’re unsure where the blower is, look for the return air duct. This is where air from your home is pulled back into the HVAC system.

The filter should be installed so air enters the open side of the filter media first and exits on the reinforced side toward the system.

Make Sure the Filter Fits Properly

Using the correct filter size is just as important as installing it in the correct direction. A filter that’s too small can allow air to bypass the filter entirely, while one that’s too tight can restrict airflow.

The filter should slide in easily but fit snugly with no gaps around the edges.

Install the Filter Securely

Once the filter is in place, make sure it’s fully seated inside the filter slot or housing. Close and secure the access panel so air doesn’t leak around the filter.

The Different Types of Air Filters Available

The way an air filter goes can be very important to the quality of the air in your home. Many different types of air filters are available on the market, and each has its unique set of benefits and drawbacks.

HEPA Filters:

High-Efficiency Particulate Air (HEPA) filters are considered to be the gold standard when it comes to air filtration. These filters can remove 99.97% of all particles that are 0.3 microns or larger from the air that passes through them. It is important to learn about the MERV ratings on filters as well, as some have more filtering capabilities than others.

This includes things like dust, pollen, and pet dander. HEPA filters are very effective, but they can also be quite expensive. Some can be washable.

Additionally, they need to be replaced regularly to continue working correctly.

Activated Carbon Filters:

Activated carbon filters are another popular option for air filtration. These filters work by adsorbing pollutants and other contaminants from the air that passes through them.

Activated carbon filters are particularly effective at removing things like smoke, chemicals, and odors from the air. However, activated carbon filters are not as effective at removing particulate matter from the air.

Additionally, they need to be replaced more frequently than HEPA filters.

Ionizer Filters:

Ionizer filters work by charging the particles in the air and then trapping them on a collector plate. This type of air filter is effective at removing particulate matter from the air, but it can also produce ozone as a by-product.

Ozone is a harmful gas that can be dangerous to your health, so ionizer filters are not ideal for use in homes with people who have respiratory problems.

UV Filters:

UV filters use ultraviolet light to kill bacteria, viruses, and other contaminants in the air. This type of air filter is very effective at purifying the air, but it can be expensive and must be replaced regularly.

Permanent Filters:

Permanent filters are designed to last for the lifetime of your HVAC system. These filters are typically made of fiberglass or pleated paper and can be washed and reused multiple times.

Permanent filters are a more economical option than disposable filters, but they need to be cleaned regularly to continue working properly. Air filters are an important part of any home’s HVAC system.

Key Takeaway: There are many different types of air filters available on the market, and each has its own unique set of benefits and drawbacks. HEPA filters are considered to be the gold standard when it comes to air filtration, but they can be quite expensive.

Why You Should Regularly Change Your Air Filter

Your air filter is an important part of your HVAC system and plays a crucial role in keeping your home comfortable and your family healthy.

While your air filter does a great job of trapping dust, dirt, and other airborne particles, it can only do so for a certain amount of time.

Eventually, it will become clogged and can no longer effectively remove these contaminants from the air.

When this happens, your HVAC system will have to work harder to circulate the air in your home, leading to higher energy bills and wear and tear on your system.

Additionally, the build-up of contaminants in your air filter can cause indoor air pollution, exacerbating allergies and respiratory problems. The good news is that changing your air filter is a quick and easy way to keep your HVAC system running efficiently and your home’s air quality clean.

It is important to change your filter every 1-3 months, depending on the type of filter you have and the level of air pollution in your area.

If you have never changed your air filter before, don’t worry – it is a simple process that only takes a few minutes. You can find air filters at most hardware stores, and many stores now sell them online as well.

When ready to change your filter, simply locate your HVAC system’s air filter compartment and remove the old filter. Then, insert the new filter and close the compartment.

That’s it! You can help keep your family healthy and your HVAC system running smoothly by taking a few minutes to change your air filter regularly.

Key Takeaway: It is important to change your air filter every 1-3 months to keep your HVAC system running efficiently and your home’s air quality clean.

Signs That It’s Time to Replace Your Air Filter

We all know that we should regularly replace the air filter in our homes. But sometimes, it can be tough to know when it’s time to do so.

1. Your Energy Bills Have Increased.

If you’ve noticed a sudden spike in your energy bills, it could be due to a dirty air filter. When your air filter is clogged, your HVAC system must work harder to push air through, which uses more energy and raises utility bills.

2. Your Home Is Dustier Than Usual.

If you’re noticing an increase in the dust around your home, it could signify that your air filter needs to be replaced. A dirty air filter can’t trap dust and other allergens as effectively, which means they’ll circulate through your home more.

3. Your Allergies Are Acting Up.

If you have allergies and you’ve noticed them acting up more than usual, it might be time to replace your air filter. A dirty air filter can circulate allergens and irritants through your home, aggravating your allergies.

4. Your HVAC System Is Making Strange Noises.

If your HVAC system makes strange noises, it could be due to a dirty air filter. A clogged air filter can restrict air flow, which can cause your HVAC system to work harder and make strange noises.

If you’ve noticed any of these signs, it’s probably time to replace your air filter. Check your air filter regularly and replace it as needed to keep your home healthy and comfortable.

Key Takeaway: If you’ve noticed a sudden spike in your energy bills, an increase in dust around your home, or your allergies acting up, it’s probably time to replace your air filter.

FAQ’s

What happens if you put an air filter in backwards?

If you put an air filter in backward, the airflow will be restricted and your furnace or air conditioner will have to work harder to circulate the air, which can lead to increased energy costs.

Which part of the air filter goes up?

The part of the air filter that goes up is the part that faces the air intake.

Does it matter which way the air filter goes if it still fits?

Yes, it absolutely matters. Even if the air filter fits perfectly in the slot, installing it backward can restrict airflow and reduce its ability to trap dust and allergens.

What happens if I accidentally install my air filter backward?

If an air filter is installed backward, air has a harder time passing through it. This can cause reduced airflow, higher energy bills, and extra strain on your HVAC system.

Is the arrow pointing toward the furnace or the air conditioner?

The arrow always points toward the blower motor, which moves air through the system. This is usually located inside the furnace or air handler.

How can I tell which side of the filter faces the HVAC unit?

If there’s no arrow, look at the filter frame. The reinforced side or wire mesh side should face the HVAC unit.

Conclusion

If you’re not sure which way your air filter goes, don’t worry – just follow the arrow on the side of the frame.

This will ensure that contaminated air passing through the filter gets trapped on the dirty side of the filter media and clean air flows freely through to be circulated throughout your home.

Regularly changing your air filter is an important part of maintaining a healthy and efficient HVAC system, so make sure to check it often and replace it when necessary.
