Thermostat Wiring Color Code [Complete Guide]

Share This Guide

Are you ready to take charge of your heating and cooling system? Look no further! In this comprehensive guide, we provide you with everything you need to know about thermostat  wiring code. From understanding wire functions to ensuring compatibility, we’ve got you covered. Say goodbye to confusion and hello to a smooth and successful installation.

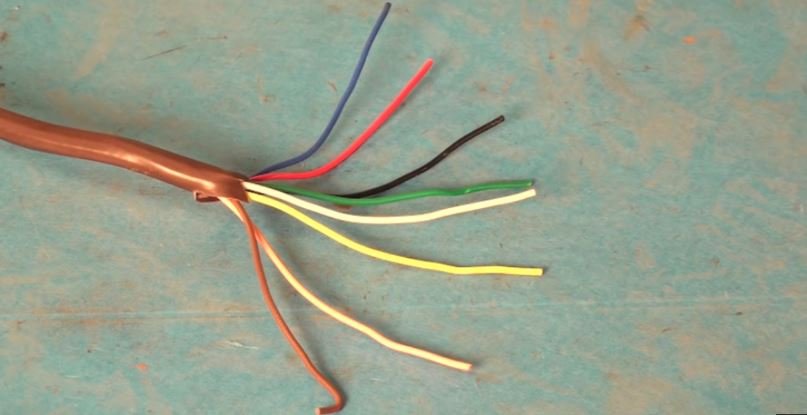

wire color code 1

Read also: How to wire a Nest thermostat

Chart for Thermostat Wiring Code, Designation and Function

Color of wireDesignationFunction
RedRPower from the transform
Not fixedRcPower for cooling
RedRhPower for heating
BlueBCommon wire
GrenGFan relay
OrangeO/BReversing valve
YellowY/Y1Compressor relays
Light blue/ othersY2Compressor relays stage 2
WhiteWStage 1 heat
BlackXBackup heat
Brown/ Not fixedAUX/E/W2Auxiliary/ Emergency/secondary heat
Not fixedACCCan be used for Humidifier/ Dehumidifier
Not fixedS, S1, S2:Outdoor temperature sensors
Not fixedLHeat Pump fault input
Not fixedKHoneywell saver module

Red wire

The red wire can either R, Rc or Rh. let’s look at what each of these wires really is below

R: This is the power wire for the heating system. It carries 24-volt power from the transformer to the thermostat.

Rc: This is the power wire for cooling. Some thermostats have separate Rc and R terminals. In that case you will need to put a jumper between the two terminals and connect them to the R wire.

For a honeywell; pro series thermostat, there is already a slide ta switch that you’ll just have to slide to the up position to make a jumper between the R and Rc termina

Rh: This is the power wire for  heating. In some systems, separate Rc and Rh wires are used for cooling and heating power, while in others, a single R wire is used for both.

Blue Wire

This  is  the common wire (C.) It provides a continuous 24-volt power supply to the thermostat, ensuring its proper functioning. Not all thermostats require a C wire, but it is commonly used in programmable thermostats, especially those with Wi-Fi connectivity.

Green Wire

The G wire (or G terminal) controls the fan. When the thermostat calls for the fan to operate, the G wire carries the signal to turn on the fan.

Orange Wire

O/B: The O/B wire (or O/B terminal) is used in heat pump systems. It controls the reversing valve, which determines whether the system is in heating mode (O) or cooling mode (B).

Yellow Wire

Y/Y1: The Y wire (or Y1 terminal) controls the cooling system. When the thermostat calls for cooling, the Y wire sends a signal to start the compressor and air conditioning unit.

Read also: White Rodgers Thermostat Wiring to Nest [How To]

Light Blue

Y2: The Y2 wire (or Y2 terminal) is an additional wire used for cooling in systems with two-stage cooling. It operates the second stage of cooling, providing additional cooling capacity when needed.

White Wire

W: The W wire (or W terminal) controls heating. When the thermostat calls for heat, the W wire sends a signal to the furnace or boiler to start the heating process.

Black  Wire

X: The X wire  was mainly used in old mercury thermostat wiring. It is  not a standard thermostat wire label in modern thermostat . It was mainly used for backup heat.

Please note again that this  is not commonly found in most residential thermostat installations.

Brown Wire

AUX/E/W2: The AUX, E, or W2 wires  are used for auxiliary or emergency heating in heat pump systems. It activates the secondary heating source, such as electric heating strips or a gas furnace, when the heat pump alone cannot meet the heating demands.

No Fixed Color Wires

ACC: The ACC wire: is not a standard thermostat wire label. When present however it may be used for connecting additional devices such as dehumidifiers and humidifiers.

S, S1, S2: The S, S1,  The wires are commonly used for  functions such as outdoor temperature sensors or system status indicators.

L: This terminal is designated for indicator lights on the thermostat, sometimes for when auxiliary or emergency heat is turned on, or if there’s a general problem with your system.

K: The K wire is a honeywell wire saver module.  This is simply formed by combining the y and the G terminal terminal to form a single k wire that goes onto the K terminal. It is used on systems that don’t provide the C wire but with a thermostat that requires one.

Read also: Amazon Smart Thermostat Wiring Diagram for Heat Pump [Full Guide]

5 wire thermostat wiring color code

Systems that use 5 wires wiring include

  • 2 stage furnace
  • 1st stage furnace and st stage air conditioner
  • 1st stage heat pump system
Type of systemG (Green)Y (Yellow)C (Blue)R (Red)W (White)W2/Aux(Brown)O/B (Orange)
2nd stage furnaceYesNot neededYesYesYesYesNot needed
1st stage furnace and 1st stage air conditionerYesYesYesYesYesNot neededNot needed
1st stage heat pump systemYesYesYesYesNot neededNot neededYes

4 Wire thermostat wiring color code

Systems that may utilize the 4 wiring code include the following:

  • 1st stage furnace
Type of systemG (Green)R (Red)W (White)C (Blue)
1st stage furnaceYesYesYesYes

6 wire thermostat wiring color code

Systems that will have 6 wiring code may include

2nd stage heat pump
An example of a 6 wire thermostat wiring
  • Furnace stage 3 Heating
  • 2nd Stage Furnace with 1st stage air conditioner
  • 1st Stage furnace with 2nd stage air conditioner
  • 1st  Stage Heat Pump with Aux Heat
  • 2nd Stage Heat Pump
  • 1 Stage Heat Pump, 1 Stage Heat
Type of systemY(Yell0w)Y2G (Green)O/B (OrangeR (Red)W1 (White)W2/Aux (Brown)C (Blue)W3/E
Furnace stage 3 HeatingYesYesYesYesYesYes
2nd Stage Furnace with 1st stage air conditionerYesNot neededYesNot neededYesYesYesYesNot needed
1st Stage furnace with 2nd stage air conditionerYesYesYesNot neededYesYesNot neededYesNot needed
1st  Stage Heat Pump with Aux HeatYesNot neededYesYesYesNot neededYesYesNot needed
2nd Stage Heat PumpYesYesYesYesNot neededNot neededNot neededYesNot needed
1 Stage Heat Pump, 1 Stage HeatYesNot neededYesYesYesYesNot neededYesnot needed

7 wire thermostat wiring color code

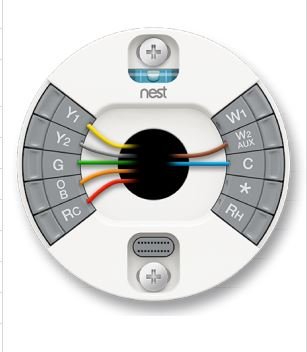

2nd stage heat pum with
An example of a 7 wire thermostat wiring
  • 2nd Stage Heat Pump with Aux Heat
  • 2nd Stage Heat Pump, 1 Stage Heat
  • 1 Stage Heat Pump, 2 Stage Heat
2nd Stage Heat Pump with Aux Heat2 Stage Heat Pump, 1 Stage Heat1 Stage Heat Pump, 2 Stage Heat
YYesYesYes
Y2YesYesNot needed
W1Not neededNot neededYes
Aux/W2YesYesYes
CYesYesYes
RYesYesYes
GYesYesYes
O/BYesYesYes

Read also: Carrier Infinity Thermostat Wiring To Nest or Honeywell [Complete Guide]

FAQ

 Can I install a thermostat without professional assistance?

Yes you can.  In fact if you are familiar or comfortable with handling electrical components, go for it, it will save you some bucks. On the other hand  if you are unfamiliar with electrical systems or uncomfortable with doing it on your own, calling a pro may be the best option.

Why is it important to follow the thermostat wiring code?

Adhering to the thermostat wiring code is important for several reasons. First, it ensures the safe and efficient operation of your HVAC system.

Second, it helps prevent damage to the thermostat, HVAC equipment, or other electrical components.

 Lastly, following the code ensures compatibility between thermostats and HVAC systems, reducing the risk of compatibility issues or malfunctions.

Can I install a thermostat without following the wiring code?

It is strongly recommended to follow the thermostat wiring code when installing a thermostat. Not following the code can lead to various issues, including electrical shorts, damage to equipment, incorrect temperature control, and even safety hazards.

Read also: How to bypass a thermostat

Final thoughts

Conclusion: Following the thermostat wiring code is crucial for the safe and efficient operation of your HVAC system.

 It ensures compatibility between thermostats and HVAC systems, reduces the risk of malfunctions and compatibility issues, and helps prevent damage to the thermostat, HVAC equipment, and other electrical components.

Read also: How to install a thermostat without C wire

 While it is possible to install a thermostat without professional assistance, it is strongly recommended to adhere to the wiring code to avoid electrical shorts, incorrect temperature control, equipment damage, and potential safety hazards.
