How To Install A Thermostat Without C Wire [Full Guide]

Share This Guide

Are you looking to install a Honeywell thermostat in your home but don’t have a C-Wire available? Don’t worry, in this guide, we provide step by step instructions on how to solve this problem.

Some  ways to install a thermostat without the C wire  include using the G wire as the C wire, using the power adapter, making use of the ‘unused’ wire or lastly by running new wires for the C wire.

thermostat installation

So first of all what is  C wire? A C-Wire, also known as a common wire, is a thermostat wire that provides a continuous source of power to any Wifi thermostat, enabling its proper functioning and allowing for stable communication with the heating and cooling system.

More ways to install a thermostat without an existing C-wire

Important! Before you start working on  your HVAC system make sure that  power is turned off for safety.

Turn off a power at the main circuit breaker, specifically the air handler and air conditioner switches. Verify power is off by either raising the temp point on your  thermostat or lowering it. If the system doesn’t start then you have successfully turned it off.

Read also: Honeywell thermostat wiring Guide

Look for and Utilize the Unused Wire

If you can’t find the 24 volt common wire, the easiest way is to go right off the terminal block of the furnace or air handler.

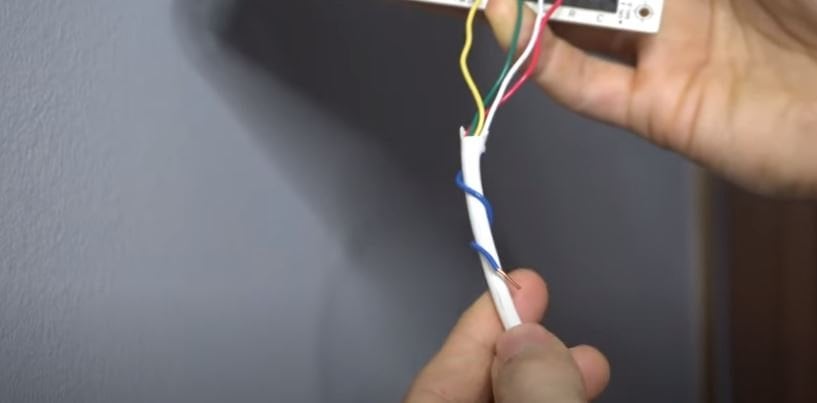

 Check whether there is an unused wire (can be blue) as shown in the image below. If there is an unused wire, hook it to the c terminal of the terminal block and go to the thermostat, fish out that unused wire and hook it to the c connector or terminal.

unused wire

Many times the problem of the c wire will be  solved with this technique but if you can find a used wire, there is another technique to solve the problem. That is using the G wire as C wire.

Combining the G and Y wires to form the K wire

Here’s another technique for forming the k wire that acts as the C wire on systems that  don’t provide the c wire but when thermostats require one.

 This method will be Ideal if your thermostat has a K terminal. The combined G and Y wires form a single wire known as the K wire that should go onto the K terminal.

Use the G Wire as the C Wire

The G wire which is  typically  green in color is  used to control the fan in your HVAC system.

So with this technique, you’ll need to remove the faceplate of the thermostat and access  the wiring.

Start by  removing the G wire from the G terminal and insert it into the C -terminal.

Then go to the furnace terminal block and do the same, removing the wire from the G terminal and hooking it to  the C-terminal.

After that, you should now  put a jumper between the G terminal and the Y terminal so that when cooling is energized the fan will also be energized.

The only downside with the method is that you’ll not control the fan independent of the cooling. If you need to do this , I recommend  you to invest in a power adapter that will turn your system’s 4 wires into 5 wires.

Get a Power Adapter

Always switch off the power to your HVAC system

A power adapter can be a useful solution if your HVAC system doesn’t have a C-Wire and you cannot repurpose an existing wire. A power adapter helps to turn 4 wires into 5 wires where you have no c wire.

It can be installed at the air handler or at the zone controller if you have multiple thermostats. In the video below, see how you can install a power adapter for your Wifi thermostat.

Running Wires to be used for C-Wire:

If all above methods are not an option, you can consider running new wires from your HVAC system to the thermostat.

This option requires some DIY skills and may involve drilling holes or accessing the wiring in your walls.

You might need help from a local HVAC professional because of the amount of work involved.

  • Purchase thermostat wire long enough.
  • Run the new wire from your HVAC system to the thermostat location, following safe and appropriate wiring practices.

FAQ

Can I install a Honeywell thermostat without a C-Wire?

Yes, it is possible to install a Honeywell thermostat without a C-Wire.  Just as with any other thermostat, you can use any of the procedures discussed in this guide to install your honeywell thermostat where there is no c-wire available.

How do I know if my Honeywell thermostat needs a C-Wire?

To determine if your Honeywell thermostat or any other model needs a C-Wire, check the thermostat’s installation manual. If that is not available.

Remove the thermostat display from the wall place and check if there is an empty C terminal on your thermostat( one which has no wire hooked to it.)

What if I don’t have an unused wire for the C-Wire installation method?

 If you don’t have an unused wire, you can consider repurposing an existing wire, such as the G wire (fan control wire) getting a power adapter. These methods can provide the necessary continuous power for your thermostat.

Can I use the G wire as the C-Wire?

Yes, in some cases, you can repurpose the G wire (fan control wire) as the C-Wire.

However, it is important to note that  when you go for this method, you’ll not be able to turn on the FAN only mode. Fan will only come on when cooling is turned on.

Final thoughts

In conclusion, installing a thermostat without a C-Wire is possible through various methods.

We hope you have managed to install yours after going through our guide. If not, it’s perhaps a good idea to call local HVAC contractors for help.

Thanks for reading.
