Fujitsu Thermostat Symbols Meaning Explained

Are you tired of staring at your Fujitsu thermostat, wondering what all those symbols mean? Don’t worry, you’re not alone!  We we’ve put together this handy guide to help you quickly understant the meaning of common Fujitsu thermostat symbolsts.  Let’s dive straight into the meanning of each of those little icons.

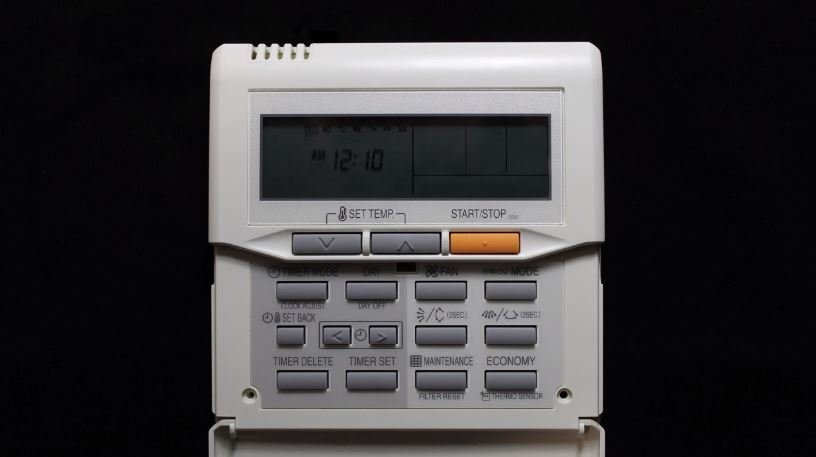

fujitsu airzone

6 Common Fujitsu thermostat symbols and their meaning

Circular Looping Arrows (Auto mode symbol)

Auto symbol on fujitsu

Looping  arrows  on a Fujitus thermost represent th Auto mode/ auto mode on a Fujitsu  thermostat is a setting that makes your life easier. It automatically adjusts the temperature for you.

When it’s too cold, the heat kicks in until it warms up to your liking. And when it gets too hot, the cooling system turns on to cool things down.

 Once it reaches the temperature you want, it stops working until it needs to adjust again. Auto mode saves you from constantly messing with the thermostat. It keeps your home comfy without you having to think about it.

Plus, it’s energy efficient, so you won’t waste money on heating or cooling when you don’t need it. It’s a simple way to stay comfortable and save cash.

Snow flake symbol

cool icon on fujitsu

The snowflake symbol on a Fujitsu thermostat is like the air conditioner’s way of saying, “Let’s chill!” When you see that symbol, it means that the thermostat is  cooling  things down in the room.

The air conditioner has kicked  into action, and is removing the heat and making the air nice and cool.

You get to set the temperature you want using the thermostat controls. The system then  will work to reach that temperature and keep it there.

It’s perfect for those hot summer days or whenever you just want a refreshing breeze.

Read also: Honeywell thermostat symbols

Water drop or Tear Drop Symbol

dry symbol fujitsu

The water drop or teardrop symbol on a Fujitsu thermostat means it’s time to tackle the humidity.

When you see that symbol or when you select the mode, it’s all about getting rid of the excess moisture in the air.

The air conditioner shifts gears and focuses on dehumidification rather than just cooling.

In Dehumidification Mode, the system works a little differently. It runs at a slightly lower capacity and adjusts its settings to target the humidity specifically.

This mode comes in handy when you’re dealing with a sticky, humid climate or when you simply want to get rid of that muggy feeling in the room.

So, whenever you see it, you know your air conditioner is set to dehumidify the air, helping you create a more comfortable and less humid environment.

Fan Blade Symbol

Fan icon fujitsu

The fan blade symbol on a Fujitsu thermostat means the fan is on. When you see that symbol it tells  you that  the fan is running even without turning on the cooling or heating.

In Fan Mode, the air conditioner circulates the air in the room, keeping it moving and preventing any stagnant pockets. It can be  great for promoting better ventilation and creating a more comfortable environment.

Sun symbol

sun symbol fujitsu

The Sun symbol on a Fujitsu thermostat represents the “Heating Mode” or “Heat Operation.” When you see this symbol  then you system is in the heatin mode. If you are using a heat pump system, thermostat will  it instruct the air conditioning system to activate the heating function to warm up your space.

Read also: Common Honeywell thermostat Symbols

Other symbols on Fujitsu and their meaning

defrost symbol

This symbol on your thermostat may mean your HVAC system is in Defrost or Oil recovery mode. It may also indicate a time off delay

What is Defrost Mode?

When it’s cold outside and the humidity is high, frost can build up on the outdoor unit of your air conditioner, which can reduce its efficiency.

Luckily, your Fujitsu thermostat has a defrost mode to tackle this issue. When frost is detected, the thermostat automatically initiates a defrost cycle.

During this cycle, the indoor fan will temporarily shut down, and you’ll see this displayed on the remote controller.

The defrost cycle typically lasts anywhere from 4 to 15 minutes, ensuring that the frost melts away and restores optimal performance to your air conditioner.

What is Oil Recovery Mode?

In multi-type air conditioners, there’s another important mode called oil recovery. During the oil recovery cycle, the indoor fan will also temporarily shut down, and you’ll see this displayed on the remote controller.

This cycle typically lasts a maximum of 5 minutes. It allows the system to recover and redistribute any oil in the refrigerant lines, ensuring smooth operation and efficient cooling.

 Once the oil recovery cycle is complete, your air conditioner will start up again, ready to keep you comfortable.

Read also: Mitsubishi thermostat symbols

What is fujitsu economy mode?

When you switch on the Economy mode on your Fujitsu thermostat, you’ll notice that the room temperature is slightly higher than your desired temperature when in cooling mode, and a bit lower when in heating mode.

This intentional adjustment helps save more energy compared to the regular mode.

By keeping the temperature a little closer to the outdoor conditions, the system reduces its energy consumption without sacrificing too much on your comfort.

So, the Economy mode is a smart way to cut down on energy usage and save some bucks while still maintaining a reasonably comfortable indoor environment.

It’s all about finding that sweet spot between efficiency and comfort!

FAQ

What is auto mode on fujitsu mini split?

Auto mode on a Fujitsu mini-split means you can sit back and relax while your system does the work.

It’s a cool feature that automatically adjusts the temperature and fan speed based on what’s happening in the room.

 When it’s too hot, the system kicks into cooling mode to bring the temperature down. And when it’s chilly, it switches to heating mode to warm things up.

 The best part is, you don’t have to lift a finger or worry about adjusting anything. The system does it all for you.

Auto mode also takes care of the fan speed. It knows just how much airflow you need to stay comfortable, so it adjusts the fan speed accordingly. No more feeling too stuffy or having a weak breeze.

With auto mode, your Fujitsu mini-split is like a smart system that keeps you cozy without any hassle. It’s a hands-free way to enjoy the perfect temperature in your space.

How do you reset the filter lamp of Fujitsu thermostat?

Press the “ MAINTENANCE / FILTER RESET” button for 2 seconds or more. The indoor unit filter lamp will go off and the filter display will disappear.

Final thoughts

To wrap up, each symbol on a Fujitsu thermostat  represents a specific mode or feature that allows you to control and optimize your air conditioning system.

From cooling and dehumidification to fan circulation and heating, these symbols guide you in selecting the desired settings to create the perfect indoor environment for any season or preference.

We hope you now the necessary  understanding of the most common symbols on a fujitis thermostat.  Thanks for reading.

Fujitsu thermostat instruction guide ( External Resource)
