White Rodgers Thermostat Wiring to Nest [How To]

Share This Guide

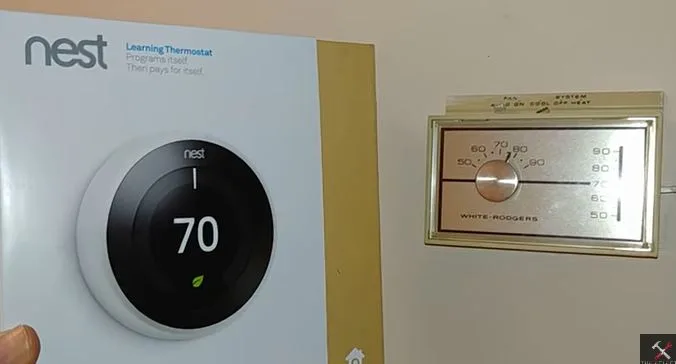

If you currently have a White Rodgers thermostat and want to take advantage of the advanced features of a Nest thermostat, we have you covered. In this guide, we will provide you with step-by-step instructions on how to wire your White Rodgers thermostat to a Nest thermostat, allowing you to elevate your home’s comfort and energy efficiency with modern smart home technology. Let’s dive in!

white rodgers to nest jpg

White Rodgers Thermostat Wiring to Nest [7 Easy Steps]

Whether you are using an old mercury white Rodgers thermostat or not, the principle of wiring it to  Nest thermostat is much pretty the same.

As I always say, if you are not comfortable doing this or you are  not really sure of what you are doing its best to call a local qualified technician. But if you choose to do this yourself, the tas should not take you more than half an hour

For a mery thermostat you’’ typically have to remove the cover  that houses the adjusting knob and the second plate that houses the mercury before you can reach out to the actual wire plate. Let’s take a look at the steps:

Read also: Old Trane Thermostat Wiring To New Thermostat [Full Guide]

Step 1: Turn off Power

Before starting any wiring work, you’ll have to turn off the power to your HVAC system by switching off the circuit breaker. This is to avoid blowing out any fuses and also for your safety. Once power is ff, heave over to your thermostat an snap off  the cover

Step 2: Take Note of Existing Wiring

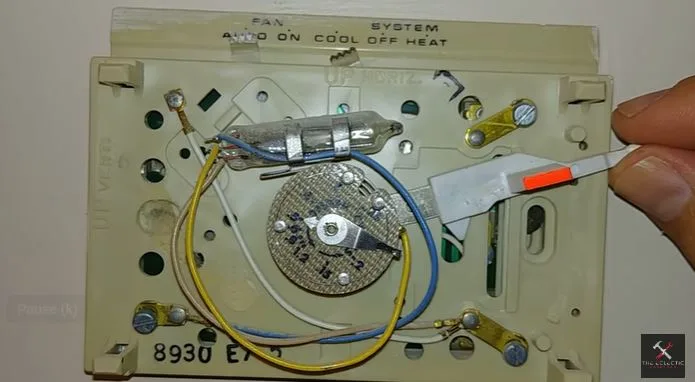

You are first going to clip off the covers.  After clipping off the main cover you should see the second one that houses the mercury which you should also have to remove.( only if you use the mercury thermostat). However if you have a non mercury thermostat you should straight see the wiring.

mercury cover jpg

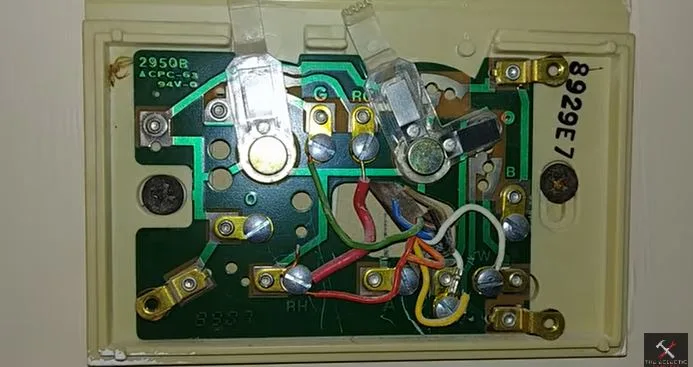

Take a clear picture or make note of the existing wiring connections on your White Rodgers thermostat. Take note of each where  as seen in this image and what they correspond to. At this point use the sticker labels that come with the Nest installation kit to label the wires as they are mapped.

old mercury thermostat wiring jpg

Read also: Nest wiring diagrams for heat pumps

Step 3: Remove Old Thermostat

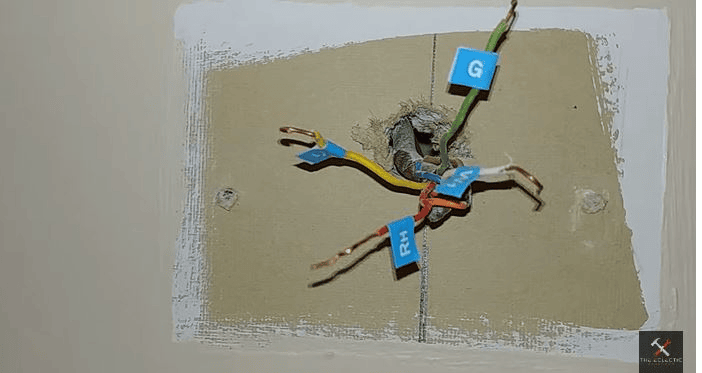

To  remove the White Rodgers thermostat from the wall,unscrew it from the wall plate. Don’t always trust the wire colors, so it’s important to label them the way they were wired

image 2

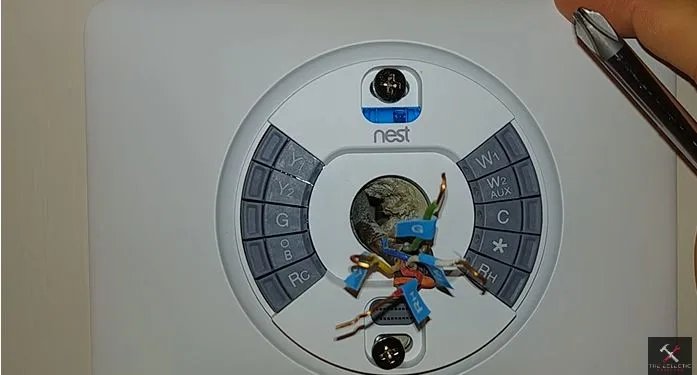

Step 4: Install Nest Thermostat Base

Follow the installation instructions provided by Nest to install the Nest thermostat base on the wall. The installation kit usually comes with an inbuilt level so there is no need to worry about leveling it.

nest mounted on wall jpg

Step 5: Connect Nest Thermostat Wiring

Now use the screwdriver to secure  the nest backplate into the wall

Using the wiring labels provided by Nest, connect the wires from the White Rodgers thermostat to the corresponding terminals on the Nest thermostat base.

Typically, the wiring connections from White Rodgers to Nest are as follows:

  • White Rodgers “R” wire to Nest “R” terminal (power)
  • White Rodgers “W” wire to Nest “W” terminal (heat)
  • White Rodgers “Y” wire to Nest “Y” terminal (cool)
  • White Rodgers “G” wire to Nest “G” terminal (fan)
  • White Rodgers “C” wire to Nest “C” terminal (common)

Note: Your White Rodgers thermostat may not typically have  “C” wire  and from my experience, I recommend you get the nest power connector for your  Nest thermostat So that you do not face cooling or heating problems in future

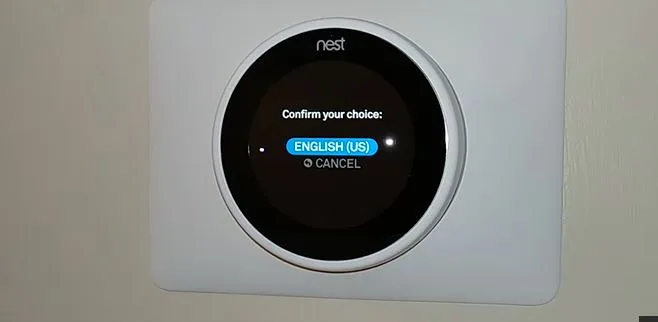

Step 6: Attach Nest Thermostat

Attach the Nest thermostat onto the base by aligning it and gently pressing it until it clicks into place.

nest fully installed jpg

Step 7: Restore Power

Turn the power back on to your HVAC system by switching on the circuit breaker.

Step 8: Set Up Nest Thermostat

Follow the on-screen instructions on your Nest thermostat to complete the setup process, including connecting it to your Wi-Fi network and configuring your preferred settings.

Read also: White Rodgers Thermostat Flame Icon Blinking [Causes + Fixes]
