Honeywell Thermostat Blowing Cold Air on Heat Setting

I’m Nathan. I’ve worked as an HVAC technician for over 10 years, and this is one of those problems I see every heating season, especially right after someone installs a new Honeywell thermostat or changes settings.

When your Honeywell thermostat is set to Heat but the vents are blowing cold air, the fix is usually one of these:

• The thermostat is configured for the wrong system type (heat pump vs conventional furnace)
• The reversing valve setting (O or B) is wrong on a heat pump
• Wires are landed on the wrong terminals (common after a thermostat swap)
• The HVAC equipment has no power or is locked out by a safety switch
• There’s an equipment fault (control board, transformer, heat pump issue, etc.)
• The thermostat isn’t compatible or isn’t powered correctly (C-wire problems)

Below is the same troubleshooting path I use in the field, written so you can follow it step by step.

Quick 2-minute checklist (do this before anything else)

1. Mode: Set thermostat to Heat (not Auto).
2. Setpoint: Raise the temperature 3 to 5 degrees above room temperature.
3. Fan setting: Set fan to Auto (not On).
   Fan On can make it feel like “cold air” because the blower runs even when heat isn’t active.
4. Wait: Give it 3 to 5 minutes. Some systems have built-in delays.
5. Know your system: Do you have a heat pump or a gas/electric furnace?
   This matters more than anything else.

If you still get cold air, move on.

First, let’s define “cold air” (because it changes the diagnosis)

In my experience, homeowners describe two different things as “cold air”:

• Truly cold air (like AC cold): often a configuration, wiring, or reversing valve issue
• Cool or lukewarm air: can be normal for a heat pump, especially during defrost or mild weather

Typical supply air temperature ranges (what you might feel at the vent)

Gas furnace	Clearly warm/hot	100 to 140 F (varies by furnace)
Electric heat strips	Very warm	90 to 120 F
Heat pump (normal heating)	Warm-ish, not “toasty”	85 to 105 F
Heat pump (defrost mode)	Can feel cool for a few minutes	Sometimes near room temp or cooler

If you have a heat pump, it can blow air that feels cooler than a furnace. But it should not feel like the AC is running when set to Heat.

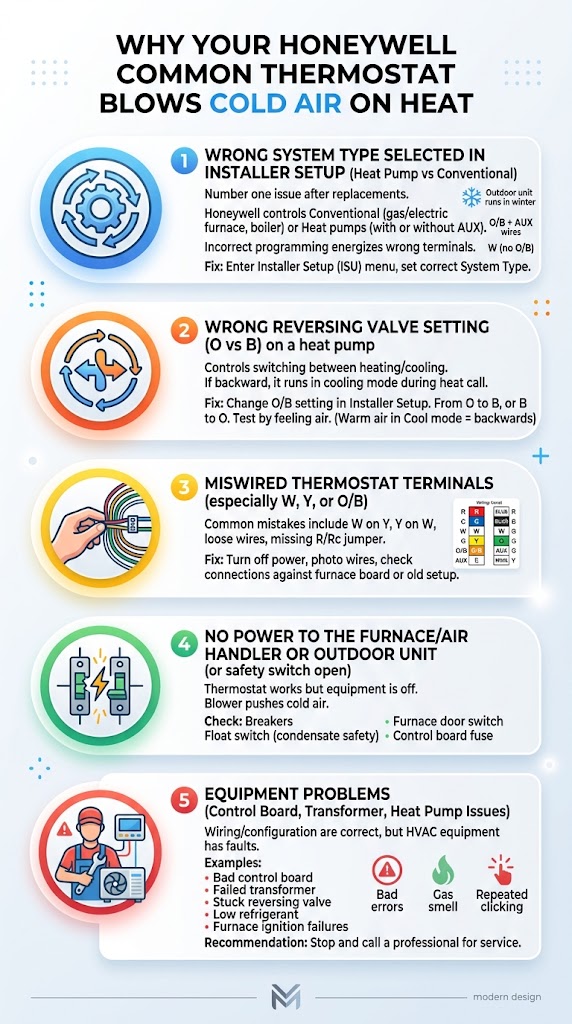

The 5 most common reasons a Honeywell thermostat blows cold air on Heat

1) Wrong system type selected in Installer Setup (Heat Pump vs Conventional)

This is the number one issue I see after thermostat replacements.

Honeywell thermostats can control:

• Conventional systems (gas furnace, electric furnace, boiler)
• Heat pumps (with or without auxiliary heat)

If the thermostat is programmed for the wrong type, it can energize the wrong terminals and you’ll get cold air when you call for heat.

How to tell what system you have

Here are quick clues:

You have an outdoor unit that runs in winter to make heat	Heat pump (most of the time)
Thermostat wiring includes O/B and AUX/W2	Heat pump
Thermostat wiring includes W (or W1) but no O/B	Conventional furnace (often gas)

If you’re unsure, check your old thermostat wiring photo (if you have one), or look at the air handler/furnace label.

Fix: Set the correct system type in Installer Setup (ISU)

Most Honeywell models have an Installer Setup menu. The button sequence varies by model (T4, T5, T6, T9, etc.), but the idea is the same:

1. Enter Menu
2. Find Installer Setup or ISU
3. Set System Type correctly (Heat Pump or Conventional)

If you set it wrong, heat can act like cool.

2) Reversing valve setting is wrong (O vs B) on a heat pump

If you have a heat pump, the thermostat controls a reversing valve that switches the system between heating and cooling.

• O = reversing valve energized in cooling (common on many brands)
• B = reversing valve energized in heating (common on some systems)

If this is backward, the thermostat will call for heat but the equipment runs in cooling mode. Result: cold air on Heat.

Simple test I use on-site

1. Set thermostat to Cool
2. Set temperature 2 degrees below room temp
3. Feel the air at a vent after a few minutes

If you get warm air in Cool mode, that’s a strong sign the reversing valve setting is backwards.

Fix: Change the O/B setting in Installer Setup

In the ISU menu, look for something like:

• Heat pump changeover
• Reversing valve
• O/B setting

Switch it:

• From O to B, or
• From B to O

Then test heating again.

Important: Don’t guess blindly. If switching O/B fixes it immediately, you found it. If not, switch it back and continue troubleshooting.

3) Miswired thermostat terminals (especially W and Y, or O/B)

After a thermostat upgrade, wiring mistakes are extremely common. I’ve corrected plenty of “bad furnace” calls that were just one wire landed on the wrong terminal.

Common wiring mistakes that cause cold air on Heat

• W (heat) wire landed on Y (cooling)
• Y landed on W
• O/B wire on wrong terminal or not configured
• Loose wire not fully clamped under the terminal
• Missing jumper between R and Rc (on some setups)

Safety first

Turn off power to your HVAC system at the breaker before touching thermostat wires.

Thermostat terminal cheat sheet (most common)

Colors are not guaranteed, but these are common conventions.

R / Rc	24V power	Red
C	Common (power return)	Blue/Black
W / W1	Heat call (conventional)	White
Y / Y1	Cooling call	Yellow
G	Fan	Green
O/B	Reversing valve (heat pump)	Orange (often)
AUX / W2	Auxiliary heat (heat pump)	White (varies)

What I recommend you do

1. Remove the thermostat faceplate
2. Take a clear photo of the wiring
3. Confirm each wire is:
   • In the correct terminal
   • Tight and fully inserted
4. Compare to:
   • The wiring at the furnace/air handler control board (best method), or
   • A photo of the old thermostat wiring

If you recently swapped thermostats and the problem started immediately, this is a top suspect.

4) No power to the furnace/air handler or outdoor unit (or a safety switch is open)

If the thermostat is working but your equipment isn’t actually heating, you can end up with the blower pushing unheated air.

These are the common “power” problems I check:

What to check

• Breaker(s): Many systems have a breaker for the furnace/air handler and another for the outdoor unit.
• Furnace door switch: If the panel isn’t seated right, the switch opens and the unit won’t run properly.
• Float switch (condensate safety): If you have a high-efficiency furnace or an air handler, a clogged drain can trip a float switch and lock out heating or cooling.
• Control board fuse: Many systems have a small automotive-style fuse (often 3A or 5A). If it’s blown, the thermostat may act odd or the system won’t respond.

Quick electrical reality check (if you have a multimeter)

Most thermostats and control boards run on 24 VAC.

R to C	~24 to 28 VAC	No/low voltage: transformer issue, blown fuse, open safety, or power problem
R to W (heat call active)	~24 VAC (depends on board logic)	If no change during heat call, thermostat/config issue
R to Y (cool call active)	~24 VAC	Helps confirm thermostat output

If you’re not comfortable testing live voltage, skip this and call a pro. It’s low voltage, but the equipment has high voltage nearby, and it’s easy to short R to C and blow the fuse.

5) Equipment problems (control board, transformer, heat pump issues)

If wiring and configuration are correct, then we look at the actual HVAC equipment.

Common equipment faults that can look like “cold air on heat”

• Bad control board (doesn’t send the right signals to heat components)
• Failed transformer (no stable 24V control power)
• Heat pump reversing valve stuck (rare, but it happens)
• Low refrigerant or outdoor coil problems (heat pump can’t move enough heat)
• Furnace ignition failures (blower runs, but burners never light)
• Electric heat strips not energizing (heat pump blows lukewarm air without AUX)

If you hear repeated clicking, see error lights on the furnace board, smell gas, or the unit is short-cycling, I recommend stopping and getting service.

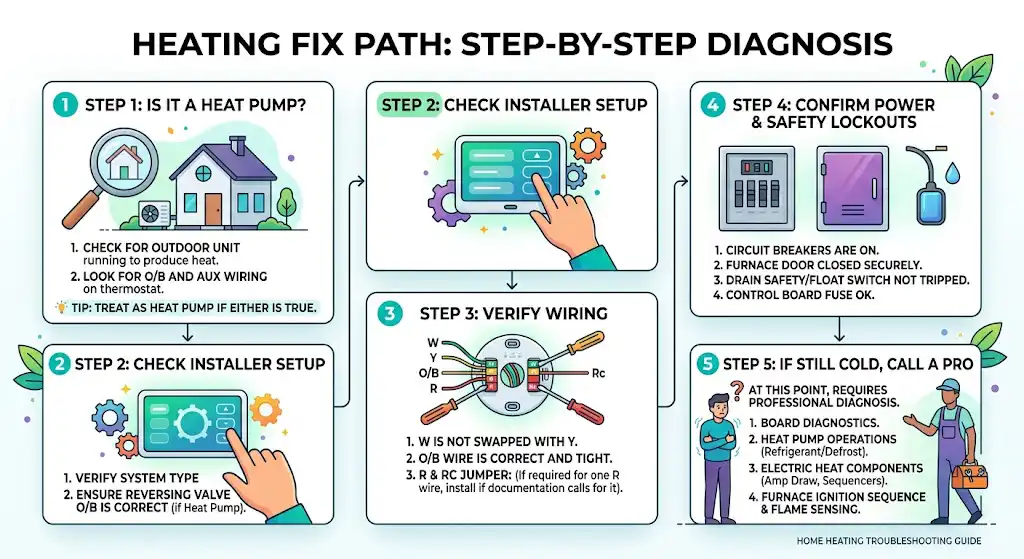

Step-by-step fix path (the order I’d do this in your home)

Step 1: Confirm whether you have a heat pump

• If you have an outdoor unit running to produce heat, treat it as a heat pump until proven otherwise.
• If you see O/B and AUX on the thermostat wiring, it’s almost certainly a heat pump.

Step 2: Check Honeywell Installer Setup

• System type set correctly
• If heat pump, reversing valve O/B set correctly

Step 3: Verify wiring at the thermostat

• W is not swapped with Y
• O/B wire is correct and tight
• R and Rc: if your model requires a jumper and you only have one R wire, install the jumper (only if your thermostat documentation calls for it)

Step 4: Confirm equipment has power and is not in a safety lockout

• Breakers on
• Furnace door closed properly
• Drain safety/float switch not tripped
• Control board fuse OK

Step 5: If still cold, it’s time for professional diagnosis

At that point, we’re typically looking at:

• Board diagnostics
• Heat pump refrigerant/defrost operation
• Amp draw and sequencers for electric heat
• Furnace ignition sequence and flame sensing

When you should call a professional immediately

I’m all for homeowner troubleshooting, but I also want you safe.

Call a licensed HVAC tech if:

• You smell gas or suspect a gas leak
• Breakers trip repeatedly
• You see burnt wiring or scorching
• You’re not getting stable 24V power (transformer/board diagnostics needed)
• The heat pump is icing heavily and not recovering
• You’ve changed ISU and wiring looks correct, but it still blows cold

Prevent this from happening again (my practical tips)

1. Take photos before changing thermostats
   A clear “before” photo saves a lot of guesswork later.
2. Label wires, don’t trust colors
   Wire color isn’t a guarantee.
3. Confirm the system type before setup
   Heat pump setup is the big one people miss.
4. Use a compatibility checker before buying a smart thermostat
   Some older systems and some multi-stage setups need specific thermostat support.
