Bradford White Thermostat Well Sensor Fault Reset

Hi, I’m Nathan. I’ve worked as an HVAC technician for over 10 years, and Bradford White water heaters are something I see in the field all the time. When a homeowner tells me they’re getting a “thermostat well sensor fault,” it usually means the heater has shut down to protect you and the equipment.

The good news is you can often reset it safely and then narrow down the real cause with a few simple checks. In this guide I’ll walk you through exactly what I do on service calls, in plain English, with the same steps I’d want you to follow in your own home.

What “Thermostat Well Sensor Fault” Means on a Bradford White

On most Bradford White gas water heaters, the temperature sensing system is tied into the gas control valve. The “thermostat well sensor” is essentially the part of the control system that “reads” tank temperature through the probe/well.

When the control believes that sensor signal is wrong or unsafe, it can go into a fault state and stop normal operation.

In real-world troubleshooting, this fault is most commonly tied to one of these:

• A weak or failing thermocouple (pilot safety sensor)
• A weak or failing thermopile (on systems that use one)
• A defective gas control valve (the sensor circuit is often part of the valve assembly and isn’t repairable)
• Less commonly: wiring issues, poor pilot flame, or combustion/venting problems causing unstable operation

Before You Touch Anything: Safety Checklist

If you take only one thing from me, take this:

1. If you smell gas, stop. Don’t reset anything. Leave the area and call your gas utility or a licensed technician.
2. Let the heater cool down if it’s been overheating.
3. Work in a well-ventilated area.
4. If you are not comfortable working around gas appliances, call a pro. A service call is cheaper than a fire, explosion, or CO issue.

First: Identify Your Type of Water Heater (This Changes the “Reset”)

“Reset” means different things depending on whether your Bradford White is gas or electric.

Quick identification table

What you see	Likely type	What the “reset” looks like
Gas line going into a gas valve, pilot access door, burner compartment	Gas water heater	Turn gas control OFF, wait, relight pilot per label
Thick electrical cable, no gas line, two access panels on the side	Electric water heater	Breaker OFF, press red reset (ECO) button under upper access panel

Most “thermostat well sensor fault” complaints I get are on gas models, but I’m covering both so you don’t waste time.

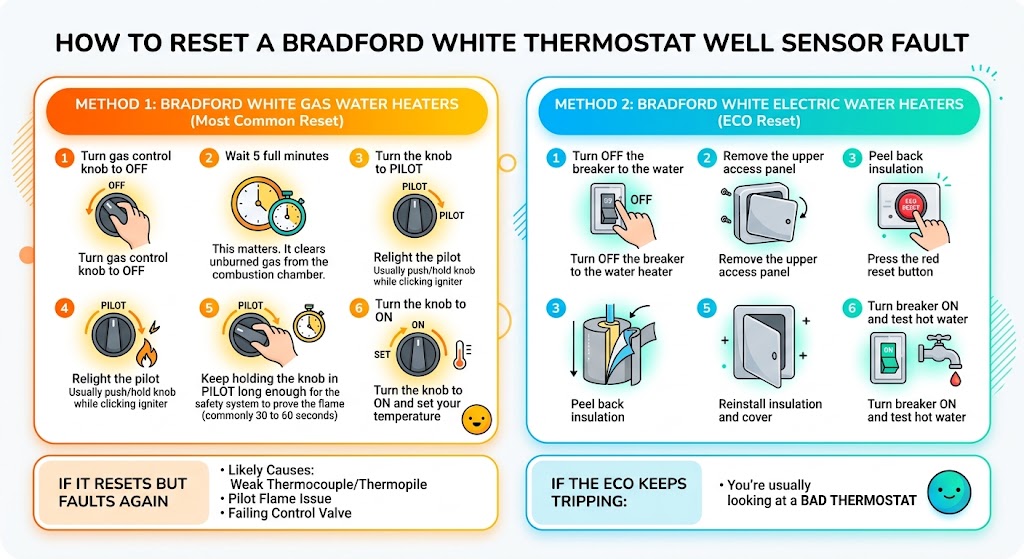

How to Reset a Bradford White Thermostat Well Sensor Fault

Reset method for Bradford White gas water heaters (most common)

This is the reset I try first when the unit is safe and there’s no gas smell.

1. Turn the gas control knob to OFF.
2. Wait 5 full minutes.
   This matters. It clears unburned gas from the combustion chamber.
3. Turn the knob to PILOT.
4. Relight the pilot exactly as the lighting instructions label shows (usually push/hold the knob while clicking the igniter).
5. Keep holding the knob in PILOT long enough for the safety system to prove the flame (commonly 30 to 60 seconds).
6. Turn the knob to ON and set your temperature.

If it resets but faults again

That usually tells me you don’t have a “one-time glitch.” You likely have a weak thermocouple/thermopile, a pilot flame issue, or a failing control valve.

Reset method for Bradford White electric water heaters

If you have an electric model, the reset is typically the ECO (Energy Cut Off) red button.

1. Turn OFF the breaker to the water heater.
2. Remove the upper access panel.
3. Peel back insulation (carefully).
4. Press the red reset button on the upper thermostat.
5. Reinstall insulation and cover.
6. Turn breaker ON and test hot water.

If the ECO keeps tripping, you’re usually looking at a bad thermostat, wiring issue, or element problem, and it should be diagnosed properly.

If Reset Doesn’t Fix It: The Troubleshooting Path I Use

Here’s the straight-to-the-point breakdown.

Common causes and fixes (field-proven)

Possible cause	What you’ll notice	What to test/check	Main fix
Bad thermocouple	Pilot won’t stay lit, unit shuts down randomly	Millivolt output test	Replace thermocouple
Defective thermopile (if equipped)	Weak power to gas control, erratic operation	Millivolt output test	Replace thermopile
Defective gas control valve / internal sensor	Pilot proves fine but fault returns, readings okay	Confirm thermocouple/thermopile readings first	Replace gas control valve
Weak/dirty pilot flame	Pilot lit but small/yellow, trouble proving flame	Visual flame check, pilot orifice condition	Clean pilot assembly or service burner
Loose connections	Intermittent faults	Inspect wire routing and connections	Reseat/repair wiring

A quick stat that helps homeowners prioritize

Water heating is typically the second-largest energy use in a home, commonly around 15 to 20 percent of household energy use depending on the home and fuel type (U.S. DOE). If your heater is short-cycling or failing to heat correctly, it’s not just annoying, it can quietly raise your bill.

How to Test the Thermocouple (Most Common Fix)

In my experience, a weak thermocouple is one of the most frequent reasons homeowners end up chasing fault codes. It can still “kind of work” and then fail when it heats up, cools down, or the pilot flame isn’t perfect.

Tools you’ll want

• Multimeter capable of reading millivolts DC
• Alligator clip leads (optional but very helpful)
• Basic hand tools (screwdriver, wrench)

Thermocouple testing procedure (millivolt output)

1. Turn the gas control to OFF and shut off gas at the shutoff valve.
2. Open the burner access area (outer door, then inner door depending on model).
3. Disconnect the thermocouple from the gas control.
4. Set your multimeter to mV DC.
5. Clip one lead to the thermocouple tip/contact end and the other to the copper body of the thermocouple.
6. Relight the pilot (you’ll typically need to hold the knob down in PILOT for this test).
7. Let the pilot run for about 3 minutes to stabilize.
8. Read the meter.

Typical thermocouple readings (rule-of-thumb)

Reading (mV)	What it usually means
20 to 30 mV	Usually acceptable on many systems
Below ~20 mV	Commonly weak, often causes dropouts
0 mV	Open circuit or dead thermocouple

If you’re in the “weak” range, I normally replace it. Thermocouples are inexpensive compared to the time spent re-lighting pilots and dealing with shutdowns.

How to replace a thermocouple (safe overview)

1. Turn gas control to OFF and shut off gas supply.
2. Remove the access doors.
3. Disconnect the thermocouple from the gas control.
4. Inside the combustion chamber, remove the thermocouple from the pilot bracket.
5. Install the new thermocouple fully seated in the pilot bracket.
6. Route it properly (don’t kink it, don’t let it rub on sharp edges).
7. Reconnect to the gas control (snug, not over-torqued).
8. Reassemble doors and relight per the lighting label.

If the pilot flame is weak or dirty, replace/cleaning the thermocouple alone may not last. I always look at flame quality too.

How to Test and Replace a Thermopile (If Your Model Uses One)

Some Bradford White systems use a thermopile (often in powerpile-style systems). A thermopile generates more power than a thermocouple and is tested a little differently.

Thermopile test steps (millivolts)

1. Disconnect the thermopile leads (often red and white) from the harness/gas control.
2. Put the multimeter on mV DC.
3. Light the pilot and allow it to run for about 3 minutes.
4. Measure across the thermopile leads.

Typical thermopile readings

Reading (mV)	Likely condition
Above ~400 mV	Generally considered good in many setups
Below ~400 mV	Weak thermopile, replacement is likely

Thermopile replacement overview

1. Turn gas OFF and shut off gas supply.
2. Remove access door(s).
3. Disconnect thermopile wires from the harness.
4. Remove thermopile from pilot bracket (often a 7/16 inch wrench).
5. Install the new thermopile, route wires correctly, and reconnect matching colors.
6. Reassemble and relight per the label/manual.

When It’s the Gas Control Valve (And What I Tell Homeowners)

If:

• Your pilot flame looks good
• Your thermocouple or thermopile tests good
• Wiring is intact
• And the thermostat well sensor fault keeps coming back

Then the most likely culprit is the gas control valve, because the sensor circuit is typically not a separately serviceable part.

Important: gas control valves are not “repairable”

In the field, when these valves go bad, they get replaced. Period.

Typical signs the valve is the problem

• Fault returns immediately after a successful relight
• Proper millivolt readings but continued shutdown
• Heater heats inconsistently even with correct settings

Gas control valve replacement (high-level steps only)

I’m going to be honest: this is where many DIY jobs turn into dangerous ones. Replacing a gas control valve involves gas piping and sealing, and often draining the tank.

A typical process involves:

1. Turn gas knob OFF, shut off gas supply.
2. Turn off cold water supply to the tank.
3. Connect a hose and drain the tank down below the valve level (often fully draining is easiest).
4. Disconnect gas supply line from the control.
5. Remove the old valve and install the correct replacement valve for your exact model.
6. Reconnect gas line using approved sealing method for gas piping.
7. Refill tank fully, purge air, then test for leaks and relight.

Leak testing is non-negotiable

Any time gas piping is disturbed, it must be leak-tested. If you don’t have experience with that, this is the point to call a licensed professional.

Cost and Time Expectations (So You Can Plan)

These ranges vary by region, model, and warranty coverage, but they help set expectations.

Item	Typical part cost	Typical labor complexity
Thermocouple	Low	Easy to moderate
Thermopile	Medium	Moderate
Gas control valve	Higher	Moderate to advanced (gas + plumbing)

If your heater is older (many tank units last roughly 8 to 12 years on average depending on water quality and maintenance), also consider whether you’re investing into a unit that’s nearing end-of-life.

Tips That Prevent Repeat Faults

These are things I recommend because I see them reduce repeat service calls:

1. Check combustion air and venting. Poor draft or restricted air can cause unstable pilot/burner operation.
2. Flush sediment periodically if your water is hard. Sediment can contribute to overheating and shortened component life.
3. Keep the burner area clean. Dust and lint buildup can affect flame quality.
4. Use the correct OEM or approved replacement parts matched to your model number.
